R_9 Modular Shelving System – Architecture in Motion

The R_9 Shelving System is a striking expression of modular freedom and sculptural design.

With its harmonious blend of linear and curved shelves intersecting a refined metal tube structure, R_9 transforms storage into architecture — equally at home in executive offices, contract interiors, and residential environments.

Designed around the principles of sustainability and circularity, R_9 is manufactured from a single recyclable material family and can be fully disassembled without glue, ensuring long life, reusability, and responsible production.

Design & Materials

The structure is composed of Ø18 mm epoxy powder-coated steel tubes forming sides and crosspieces, joined by discreet plastic connectors that are completely hidden once assembled.

● Shelves: 1.5 mm steel sheet, resting directly on the crosspieces and secured with metric screws.

● Back panels & splashbacks: 0.7 mm steel sheet, designed to flex smoothly and follow curved layouts.

● Finishing detail: Special colour-matched metal dowels close all visible gaps, completing the design with precision.

All components are finished in epoxy powder coating, guaranteeing durability and visual consistency.

System Configurations

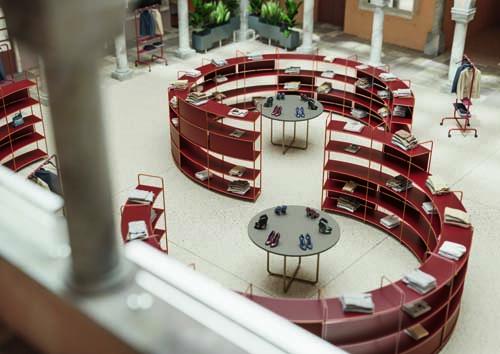

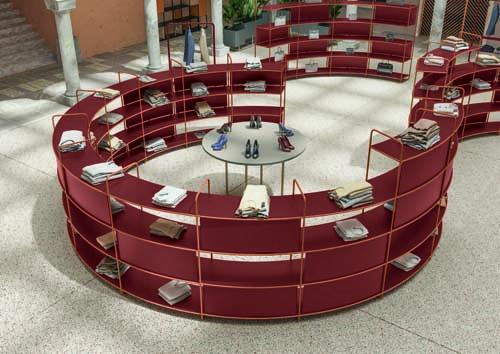

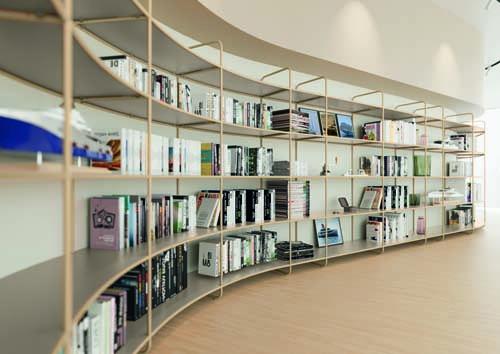

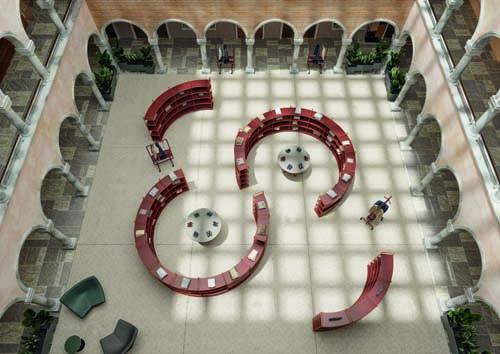

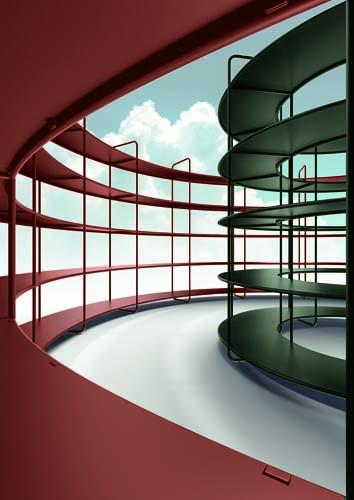

R_9 offers exceptional compositional freedom, allowing both linear and curved organic layouts:

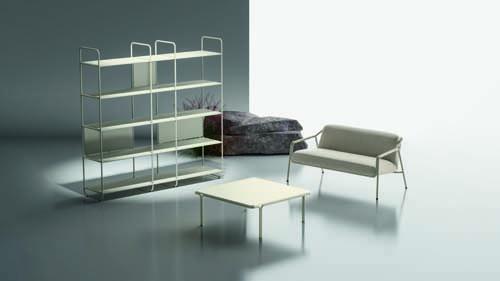

● Linear modules (A):

Widths: 382 / 482 / 782 / 982 mm

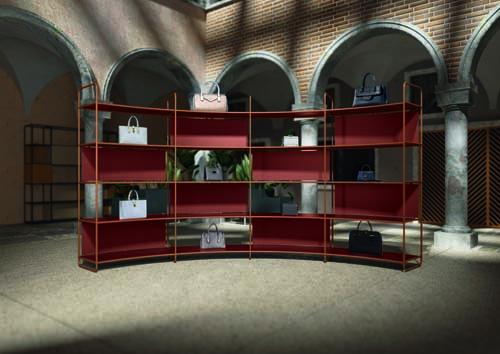

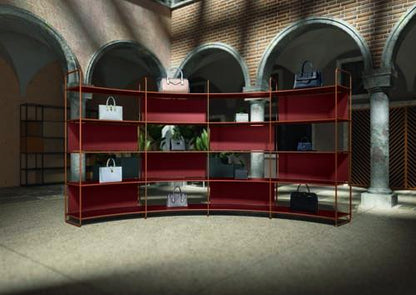

● Curved modules – internal radius 553 mm, 45° opening (B): Widths: 400 / 500 / 800 / 1000 mm

● Curved modules – internal radius 2053 mm, 22.5° opening (C): The outer radius is calculated by adding the module depth to the internal radius.

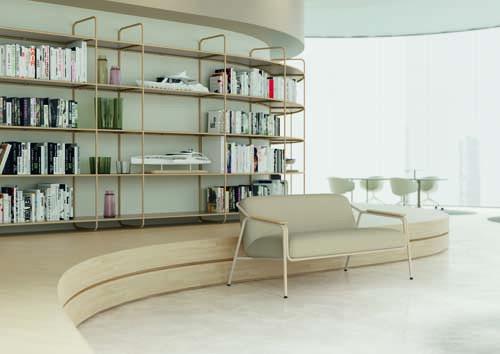

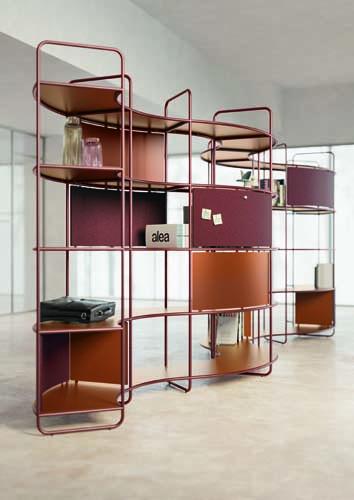

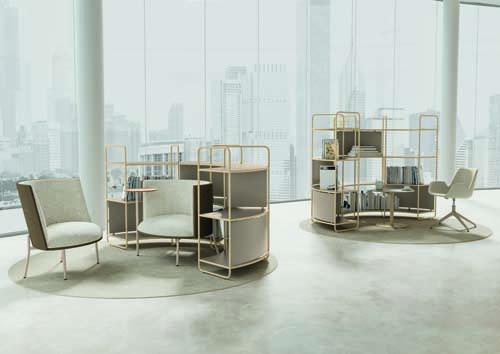

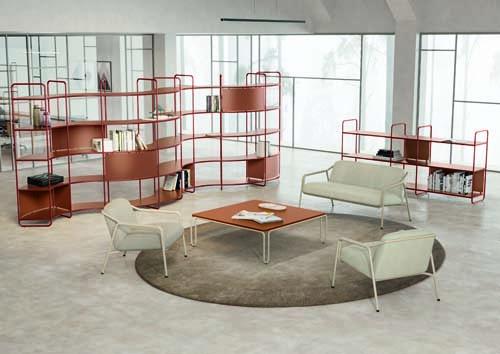

The system can be installed against walls or used as a freestanding room divider.

Dimensions & Layout Options

● Depths available:

○ 394 mm

○ 458 mm

● Heights (including glides):

○ H2 – 1158 mm

○ H3 – 1574 mm

○ H4 – 1990 mm

● Crosspiece spacing: 416 mm

● Distance between shelves: 405 mm

● Module widths: 400 / 500 / 800 / 1000 mm

(Curved module width depends on angle and selected depth.)

Key Features

● Fully modular linear and curved shelving system

● Epoxy powder-coated Ø18 mm steel tube structure

● 1.5 mm steel shelves & 0.7 mm flexible backs

● Tool-based disassembly – no glue required

● Sustainable, recyclable, circular design concept

● Hidden connectors and colour-matched dowels for flawless finish ● Suitable for wall-mounted or freestanding installations

Customisation Options

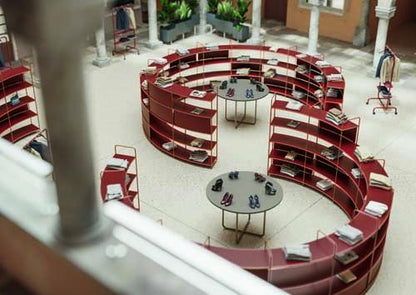

● Layouts: Linear, concave or convex curved configurations

● Widths: 400 / 500 / 800 / 1000 mm

● Depths: 394 mm or 458 mm

● Heights: 1158 mm, 1574 mm, 1990 mm

● Colours: Full epoxy powder-coated palette

Recommended For

● Executive and corporate offices

● Architectural and contract environments

● Design-driven retail and hospitality spaces

● Residential interiors requiring sculptural storage solutions R_9 – where modular design becomes architectural expression.
